Gas Cylinders
Eurotainer’s gas cylinders offer a safe and reliable method of transport and storage in smaller volumes for liquefied gases.
Eurotainer’s gas cylinders offer a safe and reliable method of transport and storage
In smaller volumes for liquefied gases.
Gas cylinders designed with the latest innovations
To optimize liquefied gas supply chains around the world.
Our cylinders come in two models, with and without frames
In two capacities, 930 and 1000 liters and in carbon steel or stainless steel construction.
Two different classifications
Available in T50 and P200 type cylinders
Key features
Global availability, 304L stainless steel barrel, liquid and gas phase valves, handling with forklift

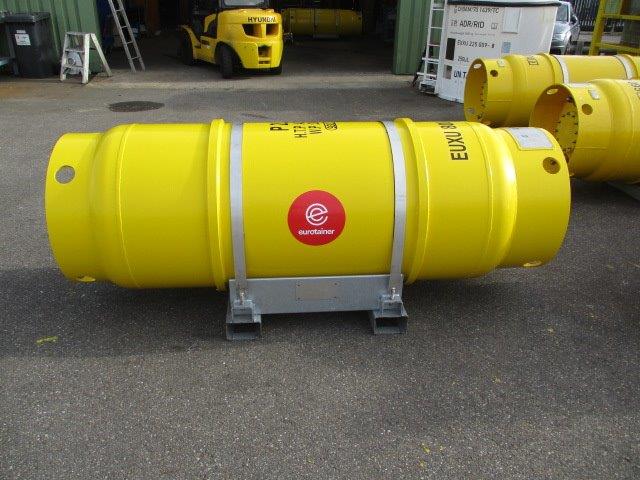

Specifications – Model without frame:
Capacity: 930 L
Diam.: 860 mm
Length : 2350 mm
Material: SS 304
Manhole opening: 240 mm
Liquid and gas valves: 1″1/4
Tare weight: 690 kg
Max gross weight: 2180 kg
Max working pressure: 28 bar
Test pressure: 42 bar
Approval: P200

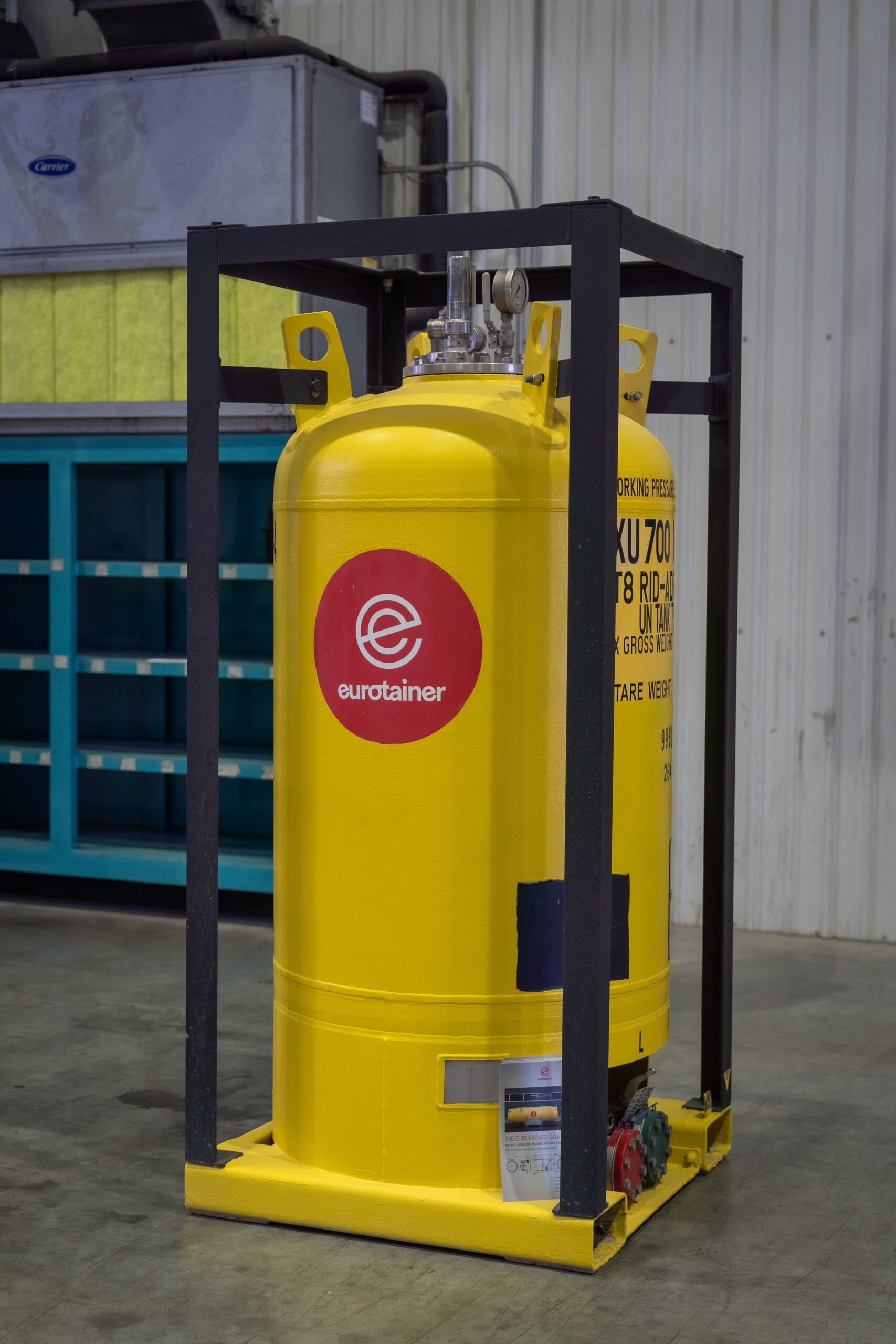

Specifications – Framed Model:
Capacity: 1000 L
Dimensions: 1000 x 1018 x 2000 mm
Manhole opening: 450 mm
Liquid and gas phase with 2″ bottom ball valves
Tare weight: 910 kg
Max gross weight: 3000 kg
Max working pressure: 27 bar
Test pressure: 36 bar
Approval: UN T50
Specification Options:
Carbon steel barrel, 150 Bars working pressure tanks for hydrochloric acid, pharmaceutical tanks built in 304 grade stainless steel, GPS tracking, various valve connections and fittings.
Sample Product List:
Refrigerants (R gases), ammonia anhydrous, propane, butane, LPG, dimethylamine, trimethylamine anhydrous, ethyl chloride, methyl chloride and other gases
Contact your nearest Eurotainer representative for more information on our Gas Cylinders

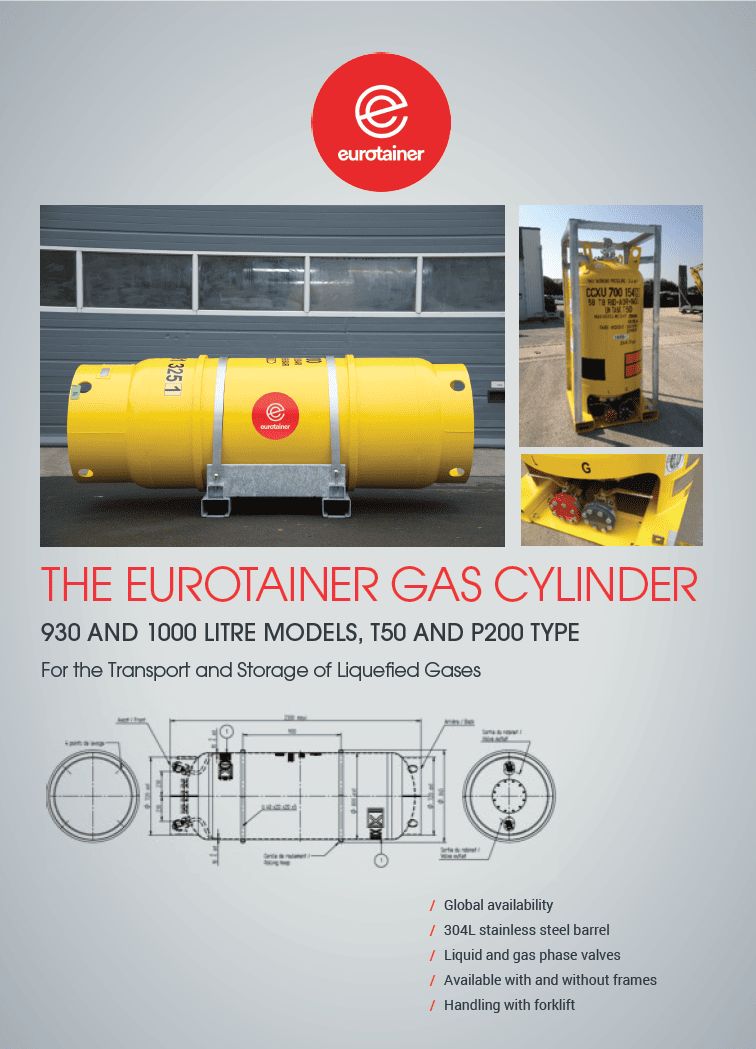

ContactGas Cylinder Brochure
